Description

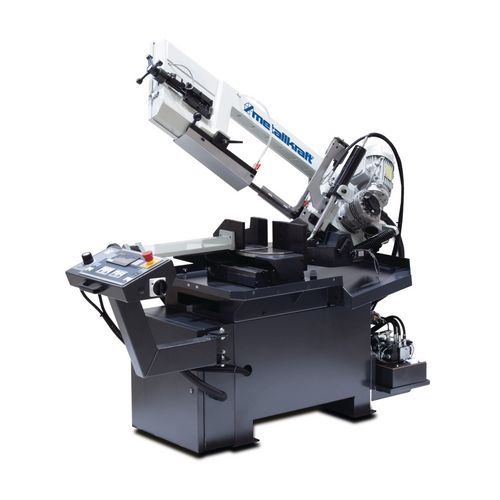

Miter adjustment from -45° to +60° from the front for better handling with attached roller conveyor Robust band guides with adjustable carbide plates for a precise cut Saw blade guides with cooling system Electromechanical monitoring of the saw blade tension via microswitch With chip clearing brush for optimum cleaning and maintenance of the saw blade When the saw arm is raised, the lowering cylinder locks automatically in the upper position - no additional locking on the cylinder is required Saw arm tilted by 25°, thus extending the service life of the saw blade The saw blade stops automatically at the end of the cutting process Hydraulically controlled lowering of the saw arm Turntable with swivelling cutting gap: No cutting into the saw table, therefore always a flat contact surface and therefore greater cutting accuracy Ergonomic operating concept Vice with quick clamping device Functionality of the semi-automatic machine: Automatic workpiece clamping after the start of the cutting cycle Execution of the saw cut at the selected belt speed Automatic stop of the lowering movement and the saw blade in the lower end position Automatic return of the saw arm to its upper end position Vice opens automatically Operator only has to move the material

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
