Description

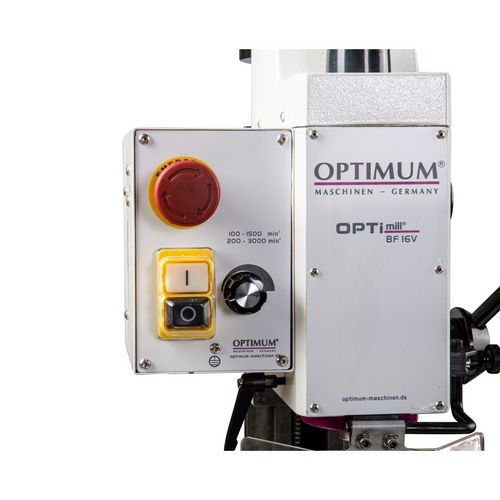

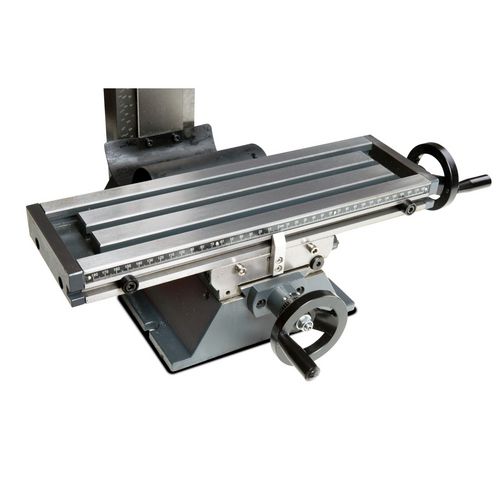

Versatile application possibilities Two-stage gear ratio Tool holder MK 2 Safety electronics in 24 Volt version EMC filter class C1 Drilling and milling head can be tilted by ± 90 ° on both sides, thus drilling and milling in angular position as required Height-adjustable and large-dimensioned protective screen with microswitch Accurate delivery through positional scale rings on all handwheels Simple and clear operating unit with on-off switch, potentiometer and emergency stop impact switch Infinitely variable speed from 100 to 3,000 min-1 High concentricity measured by tapered roller bearing better than 0.015 mm in quill Stable column with dovetail guide via wedge bars adjustable on all 3 axes Game in the feed spindle adjustable and adjustable Column laterally displaceable for extended application Massive cross table with T-slots and coolant channel as well as adjustable end stops Integrated longitudinal scale in the cross table All travel paths can be read on scales Clean milling pattern by individually clamped guides Inexpensive and stable in value

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
