Description

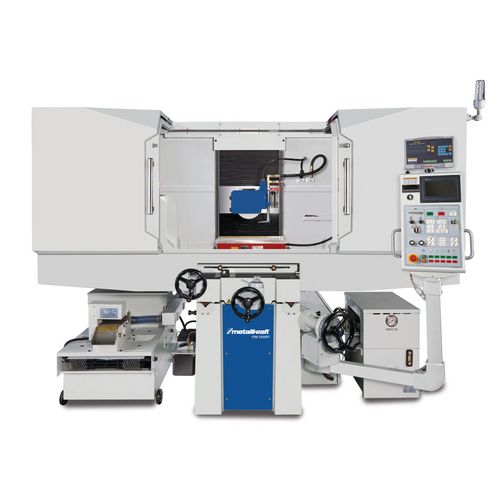

For precision surface grinding work Maximum rigidity and stability due to stress-free annealed and hardened cast iron construction User-friendly touchscreen control: HMI graphic interface; all functions and grinding feed controllable; five program memories; function and error display; 7" screen size Automatic feed control AD5: Various sanding cycles are available: Surface grinding with infeed at the start point, flute grinding with infeed at the start point, flute grinding with infeed at the start and end point. The infeed of the grinding wheel can be customized depending on the workpiece. The overall grinding dimension is divided into coarse and fine infeed, the infeed steps can be freely entered with a minimum resolution of up to 0.001 mm, depending on the application. The option of programming dead cycles after a certain number of infeed steps as well as passes for burn-out after reaching the sanding dimension ensures the best sanding results Electromagnetic clamping plate Automatic demagnetization device Automatic adjustment of the cross feed Cross sanding device Recirculating ball screw and manual fine feed in the transverse axis Longitudinal stroke adjustment via solenoid valve Signal light to indicate the current operating mode Quantity-controlled central lubrication system Coolant device Splash guard at the front, sides and rear Alignment feet

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
