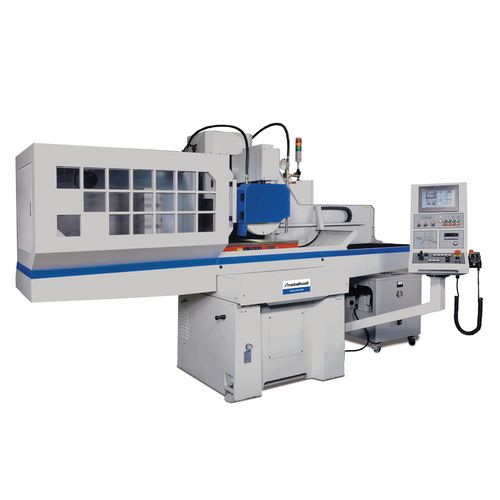

Description

Standard equipment

10" touchscreen NC control G1 for Y and Z axes Grinding modes: flat grinding, plunge grinding, cross grinding Spindle bearing class P4 from NSK guaranteed concentricity of 0.002 mm Turcite-B coating in the X and Z axes for grinding heavy workpieces Backlash-free ball screws in the Y and Z axes NC-controlled parallel pull-off and compensation device above the machine table Coolant device with magnetic separator Partial encapsulation of the work table with monitored door Infinitely variable speed of the grinding spindle thanks to an inverter Automatic, hydraulic X-axis feed Stepless adjustment of the X-axis speed via hydraulic reg elventil Automatic, motorized Z-axis feed driven by servo motor Adjustment of the end positions in X and Z-axis via joystick Automatic, motorized Y-axis feed with servo motor electronic handwheel for the Y and Z axes automatic central lubrication of all axes/guides. optional special equipment

NC controlled parallel pulling and compensating device on the grinding head Automatic balancing device Full encapsulation of the grinding area with two sliding doors Additional grinding wheel flanges Increased motor performance

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
