Description

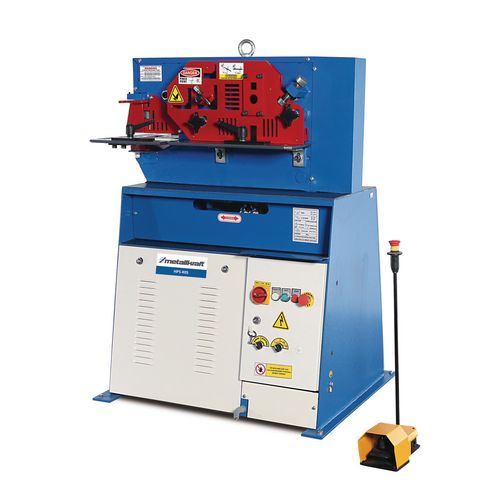

Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears Stepless adjustment of the stroke Larger reach for punching station with 620 mm optional, available from HPS 55DS Heavy and rigid welded construction Standard with notching knife starting from HPS 45S With powerful 400 Volt motor V-notching knife, oversized punching device and larger throat depth for punching station available on request Two-stage foot pedal for inching operation Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S) Advantages of punching over drilling: High time savings - cycle times No chips No cooling Note: All hydraulic sectional shears are delivered with oil

• Braced machine bed made of gray cast iron
• Elaborate spindle bearing
