ESD Protected Area (EPA) Setup Guide for Saudi Arabia
As Saudi Arabia accelerates its localized industrial manufacturing and high-tech assembly sectors under Vision 2030, facilities across the Kingdom are handling increasingly sensitive components. From advanced defense electronics assembly to industrial automation maintenance, managing the threat of Electrostatic Discharge (ESD) is vital for operational reliability.
For engineers, quality assurance managers, and facility directors, achieving compliance with international standards is essential to securing corporate and government contracts. Building an effective ESD Protected Area (EPA) is the foundation of this process. This guide breaks down the technical requirements, environmental factors, and core infrastructure components necessary to establish a functional EPA.
What Is an ESD Protected Area?
An ESD Protected Area (EPA) is a defined space within a facility where electrostatic-sensitive devices (ESDS) are handled, stored, or processed under an established ESD control program.
The primary objective of an ESD control program is to manage charge generation, accumulation, and dissipation rather than attempting to keep every object at an identical electrical potential. This control is achieved through systematic grounding, equipotential bonding, appropriate dissipative or conductive materials, personnel grounding, environmental management, and strict operational procedures. Within this defined perimeter, electrostatic fields and potentials are managed to stay below the damaging thresholds of the sensitive components being handled.
Why ESD Control Matters in Saudi Arabia
Managing electrostatic charge behaves differently depending on ambient atmospheric conditions. Saudi Arabia's dry conditions, particularly during periods of low relative humidity, can increase the risk of electrostatic charge accumulation. When ambient air is dry, the natural dissipation of static charges into the air slows down significantly.
Furthermore, HVAC-controlled indoor environments which run continuously across industrial zones in Riyadh, Jeddah, and Dammam, can further influence static charge behavior by lowering indoor relative humidity if not carefully monitored. Routine activities, such as walking across standard flooring or handling untreated plastic materials, can generate electrostatic potentials of several thousand volts under certain conditions. Because these discharges are often too small for a human to see or feel, components can suffer catastrophic or latent damage without the operator ever realizing it.
IEC 61340-5-1 and ANSI/ESD S20.20
To establish an auditable ESD control program, facilities in Saudi Arabia commonly work to internationally recognized standards. The two primary guiding frameworks are:
IEC 61340-5-1: The international standard governing the protection of electronic devices from electrostatic phenomena.
ANSI/ESD S20.20: The multi-industry standard for developing an ESD control program.
These standards establish requirements for grounding and bonding applicable conductive and dissipative elements within the EPA as part of the facility's ESD control program.
Important Distinction: Purchasing compliant furniture alone does not make an entire facility compliant. ESD furniture is a critical component of an EPA, but overall compliance depends on a holistic control program that integrates flooring, personnel grounding, packaging, continuous verification records, and operator training.
What Does an ESD Protected Area Require?
An effective EPA functions as an interconnected ecosystem. If one link in the grounding chain fails, the integrity of the entire space is compromised. A comprehensive setup requires the integration of several core elements:
Define the EPA and Entry Controls
The boundary of the EPA must be physically distinct and clearly marked.
Signage: Install high-visibility ESD warning signs and floor marking boundaries at all entry thresholds.
Pre-Entry Testing: Implement dedicated testing stations where personnel must verify the electrical continuity of their wrist straps and ESD footwear before stepping into the protected zone.
Install ESD Workstations

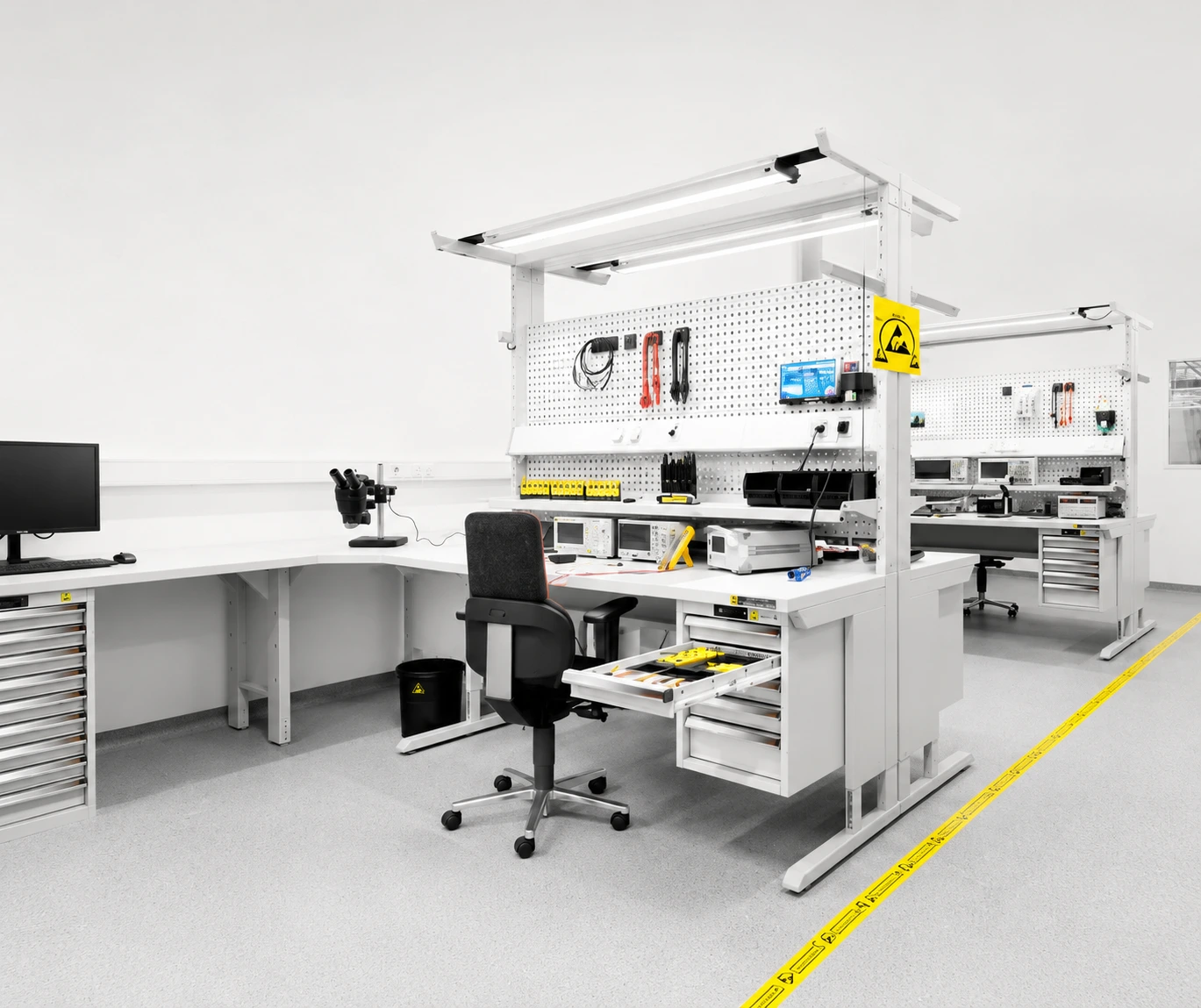

Within the workspace, the bench surface is the primary interface for sensitive components. Purpose-built ESD workstations and furniture provide controlled, dissipative working surfaces for electronics assembly and repair environments. Rather than relying on temporary mats over standard tables, structured workbenches use materials engineered to provide a reliable path for controlled electrostatic dissipation.
Establish Grounding and Bonding
An anti-static bench must be structurally tied into the facilityu2019s grounding infrastructure to operate correctly.
Common Point Ground (CPG): The frame, shelves, and surface elements of the workbench must bond to a central grounding point on the unit.
System Integrity: All common point grounds from various benches must tie back to the facilityu2019s verified protective earth connection, maintaining a controlled path to ground rather than just aiming for the lowest possible resistance.
Implement Personnel Grounding
People are one of the primary sources of electrostatic charge generation during movement.
Seated Operations: Operators should use approved wrist-strap grounding systems connected to the workbench grounding point, as specified by the facility's ESD control program.
Mobile Operations: Technicians working in mobile operations can use ESD-compliant flooring together with appropriate ESD footwear or heel grounders to maintain a controlled path to ground.
Use ESD Storage and Packaging
Electrostatic protection must extend beyond the workbench to parts in transit or storage.
Shielding & Storage: Components must be kept in static-shielding packaging or specialized ESD containers when moved outside the EPA boundary.
Industrial Tool Storage: Inside the zone, tool storage cabinets and mobile units should feature static-dissipative finishes to prevent fields from building up near sensitive tools.
Control Flooring and Environmental Conditions
Conductive Flooring: The floor surface itself must work in tandem with footwear to safely dissipate charges generated by human movement.
Climate Management: Facilities should monitor humidity levels within their HVAC systems to prevent severe drops in indoor relative humidity that amplify static risks.
Establish Verification and Documentation
Quality audits depend heavily on data logs and proof of system compliance.
Verification Schedule: Establish a documented verification schedule for personnel grounding apparatus, work surfaces, flooring, and grounding connections based on your specific ESD control program and applicable standards.
Calibration Logs: Regularly inspect and log surface resistance using accurate compliance testing meters to ensure materials have not degraded due to wear or harsh cleaning agents.
Industries That Can Benefit From ESD-Controlled Work Areas in Saudi Arabia
As the Kingdom diversifies its industrial capabilities, an increasing number of high-specification sectors require dedicated ESD infrastructure:
Electronics and Component Manufacturing: PCB assembly, soldering stations, and micro-component production lines.
Defense Electronics & Aviation Maintenance: Repair, calibration, and overhaul of critical communications, radar, and navigation modules.
Telecommunications Infrastructure: Server assembly, data center maintenance workshops, and networking equipment staging.
Industrial Automation & Robotics: Programming, configuring, and maintaining PLC modules and control panels used in heavy industry.
Testing and Calibration Laboratories: Precision environments where static electricity can distort measurement readings or damage sensitive diagnostic sensors.
Build an ESD-Controlled Work Environment in Saudi Arabia
Establishing an EPA requires more than installing an anti-static workbench. The workstation, grounding system, personnel protection, flooring, storage, packaging, and verification procedures must work together as part of a documented ESD control program.
Machinery provides industrial workstation and ESD furniture solutions from established European manufacturers, including the Hoffmann Group's GARANT range. For modular industrial environments, the GARANT GridLine ESD workstation series provides configurable and scalable workstation solutions designed to fit into standardized industrial layouts. Our team can help businesses identify suitable workstation configurations for electronics assembly, maintenance, testing, and other ESD-sensitive applications across Saudi Arabia.
Frequently Asked Questions
Q: What is an ESD Protected Area?
Ans: An EPA is a designated workspace equipped with specific materials, grounding systems, and procedures designed to minimize the accumulation and sudden discharge of static electricity while handling electrostatic-sensitive devices.
Q: What is the difference between an EPA and an ESD workstation?
Ans: An ESD workstation is a specific item of furniture featuring a dissipative surface and grounding points. An EPA is the entire controlled zone, which encompasses the workstation, the flooring, personnel protective gear, environmental controls, and operational protocols.
Q: What standard is used for ESD control?
Ans: Industrial facilities globally and across Saudi Arabia primarily adhere to IEC 61340-5-1 or ANSI/ESD S20.20 to design, document, and audit their electrostatic discharge control programs.
Q: Is ESD furniture enough to make an area compliant?
Ans: No. ESD furniture provides the proper working surfaces and structural grounding paths, but a facility must still implement personnel grounding (wrist straps/footwear), ESD-safe flooring, specialized packaging, training programs, and regular verification testing to achieve full audit compliance.
Q: Why is grounding important in an ESD workstation?
Ans: Grounding and bonding provide a controlled path for electrostatic charges to dissipate safely from work surfaces and personnel, helping prevent damaging discharges to sensitive components.
