ESD vs Non-ESD Workstations: What Is the Difference?
In electronics assembly, PCB repair, semiconductor handling, and general industrial manufacturing, selecting the right benchtop infrastructure is a foundational operational decision. Choosing between a standard non-ESD workbench and a specialized Electrostatic Discharge (ESD) workstation directly impacts product yield, component reliability, and operational compliance.
While both workstation types offer structural support, load capacity, and ergonomic organization for operators, they manage static electricity in fundamentally different ways.

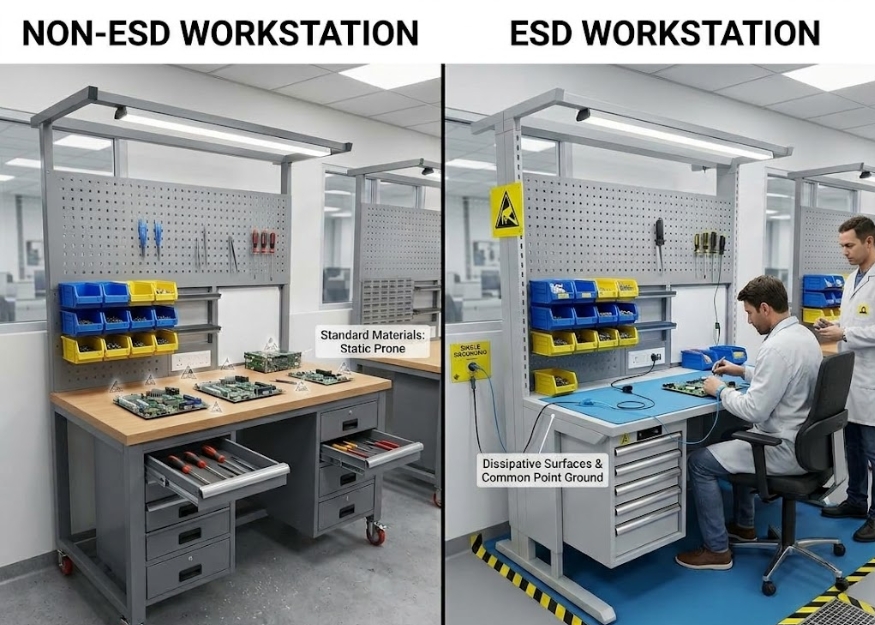

ESD Workstation vs Non-ESD Workstation
The main difference between an ESD workstation and a non-ESD workstation is static charge control. A standard non-ESD workstation is designed for general mechanical work and does not provide controlled electrostatic dissipation. An ESD workstation uses static-dissipative work surfaces, conductive framework bonding, and a defined grounding system to prevent static charge accumulation and allow safe, controlled charge dissipation when handling sensitive electronics.
What Is a Non-ESD Workstation?
A non-ESD workstation is a standard industrial workbench engineered for general assembly, mechanical repair, packaging, or woodworking. These benches prioritize load capacity, physical durability, and operator ergonomics.
Key Characteristics of Non-ESD Workstations
- Insulative Work Surfaces: Standard work surfaces are constructed from materials like high-pressure laminate (HPL), wood, standard plastics, or painted steel.
- Trapped Electrostatic Charges: Insulating materials act as electrical barriers. Rather than allowing charges to dissipate, insulating surfaces trap static electricity generated by friction or movement.
- Absence of Grounding Pathways: Standard industrial workbenches lack integrated grounding points, continuous ground bonding cords, or dissipative physical connections to facility ground.
What Is an ESD Workstation?
An ESD workstation is a technical workbench designed to minimize static charge buildup and provide a defined, controlled path for charge dissipation to ground. An ESD workstation forms an integral physical component of an ESD Protected Area (EPA).
Key Characteristics of ESD Workstations
- Static-Dissipative Surfaces: ESD work surfaces are engineered with controlled electrical resistance so that electrostatic charges dissipate in a controlled manner rather than accumulating or discharging abruptly.
- Integrated Grounding Systems: Metal structural frames, shelving, drawers, and work mats are electrically bonded to a Common Ground Point (CGP), which connects directly to the facility's designated grounding system.
- ESD-Safe Accessories & Interfaces: Component storage, shelving, tool racks, and operator wrist-strap connection ports are built with conductive or dissipative materials to preserve electrical continuity across the workstation.
Technical Comparison: ESD vs Non-ESD Workstations
Primary Application
- Non-ESD Workstation: Suited for general mechanical assembly, hardware sorting, equipment maintenance, and non-sensitive packaging.
- ESD Workstation: Designed for static-sensitive electronics assembly, surface-mount technology (SMT) rework, PCB repair, and semiconductor testing.
Surface Electrical Properties
- Non-ESD Workstation: Features insulative surfaces that trap and hold electrostatic charges generated by friction or movement.
- ESD Workstation: Utilizes static-dissipative surfaces with controlled electrical resistance to enable gradual, safe charge bleed-off.
Static Charge Behavior
- Non-ESD Workstation: Retains trapped charges, creating a risk of sudden, uncontrolled electrostatic discharges when grounded conductors or components approach.
- ESD Workstation: Facilitates continuous, low-voltage charge dissipation through a defined, grounded pathway without producing destructive voltage spikes.
Grounding Integration
- Non-ESD Workstation: Features an ungrounded frame and surface with no built-in connection to the facility earth ground.
- ESD Workstation: Connects all dissipative surfaces, metallic structures, and storage accessories to a central Common Ground Point (CGP) bonded to the facility grounding system.
Operator Connection Interfaces
- Non-ESD Workstation: Lacks dedicated operator grounding interfaces or wrist-strap attachment ports.
- ESD Workstation: Integrates dedicated grounding jacks and terminals for connecting operator wrist straps and continuous monitoring systems.
Standards Context
- Non-ESD Workstation: Governed by general industrial safety, mechanical load, and ergonomic guidelines (e.g., standard ISO or OSHA guidelines).
- ESD Workstation: Deployed as an integral component of a broader ESD control program managed under standards such as ANSI/ESD S20.20 or IEC 61340-5-1.
Understanding Static Charge Behavior Across Workstations
The mechanical interaction between an operator, tools, and the bench surface demonstrates why standard technical furniture poses risks during electronics handling:
- On a Non-ESD Workstation: Friction from sliding a plastic component tray across a standard laminate surface creates an electrostatic charge. Because the surface is insulating, the charge remains trapped on the bench top. If an operator brings a grounded electronic assembly close to this charged area, a rapid, uncontrolled discharge can occur, causing voltage breakdown in delicate internal micro-circuitry.
- On an ESD Workstation: When an electrostatic charge is generated on an ESD-safe surface, the controlled electrical resistance prevents rapid discharge. Instead, the charge bleeds off gradually across the surface, flowing down through the bonded grounding connections into the facility's designated grounding system without generating destructive voltage spikes.
Topical Relationship: The Role of an ESD Workstation in Static Control
An ESD workstation is a single component within an ESD Protected Area (EPA), rather than a standalone replacement for a complete ESD control system. Effective ESD control relies on a combination of personnel grounding, dissipative work surfaces, defined grounding infrastructure, environmental controls, static-shielding packaging, and regular verification audits.
Why ESD Workstations Are Critical for Electronics Assembly
Utilizing standard non-ESD benches near sensitive electronic components introduces operational risks that affect product quality and facility productivity:
1. Prevention of Latent Defect Modes
Uncontrolled static discharge often results in latent defectsu2014internal micro-damage where a component passes factory end-of-line testing but fails prematurely after deployment. ESD workstations help keep static potential exposure below device sensitivity thresholds.
2. Yield Stabilization Across Production Lines
Replacing insulating surfaces with grounded ESD workstations reduces unexplained testing failures and line rejections during manual assembly, testing, and SMT rework.
3. Support for Quality Program Standards
ESD workstations are commonly used as part of an ESD control program developed according to standards such as ANSI/ESD S20.20 and IEC 61340-5-1. Deploying properly grounded furniture helps facilities meet the technical audit requirements set by international OEMs and tier-1 partners.
ESD Workstations for Electronics Manufacturing in Saudi Arabia
Electronics assembly, PCB repair, telecommunications, medical device maintenance, defense, and industrial automation facilities across Saudi Arabia require controlled work environments when handling electrostatic-sensitive devices.
For manufacturing plants and technology hubs in Riyadh, Jeddah, Dammam, Jubail, and major industrial cities, selecting the right workstation involves assessing component sensitivity, facility grounding infrastructure, operator workflows, and customer specifications. Deploying durable technical furniture Saudi Arabia facilities can trust ensures long-term operational reliability across demanding industrial environments.
Which Workstation Is Better for Electronics Assembly?
An ESD workstation is the appropriate choice when workers handle electrostatic-sensitive devices such as printed circuit boards (PCBs), semiconductor components, sub-assemblies, or sensitive medical electronics. A standard non-ESD workstation is generally suitable for mechanical assembly, hardware packaging, plant maintenance, and applications where electrostatic discharge poses no risk to the product.
ESD Workstation Selection & Procurement Checklist
Before selecting an ESD workstation for your facility, evaluate these essential technical parameters:
- Static-Dissipative Work Surface: Ensure the top surface material meets the specific resistance requirements defined in your facility's ESD control program.
- Defined Grounding Connection: Verify that the bench includes a Common Ground Point (CGP) to connect directly to the facility's designated grounding system.
- Operator Grounding Interfaces: Check for integrated wrist-strap connection jacks and compatibility with foot-grounding systems.
- Grounding of Conductive Accessories: Confirm that attached steel shelves, tool racks, drawers, and light fixtures maintain ground continuity with the frame.
- Structural Load Capacity & Ergonomics: Match the frame rating (e.g., standard vs. heavy-duty steel) and height-adjustability features to operator tasks.
- System Integration: Ensure compatibility with broader static control measures, including ESD flooring, protective ESD mats, grounded ESD seating, and static-shielding cleanroom furniture.
Choosing between an ESD and a non-ESD workstation depends on the materials being handled, device sensitivity, and facility quality requirements. For electronics assembly, testing, and repair environments, a properly grounded ESD workstation provides a controlled, reliable surface for handling electrostatic-sensitive devices.
If you are outfitting a new facility or upgrading existing technical furniture, explore our selection of ESD Workstations and static control equipment tailored for industrial facilities across Saudi Arabia. To discuss custom bench configurations, surface options, or technical specifications, Contact Our Technical Team to speak with an equipment specialist.
Frequently Asked Questions
Q: What is the difference between an ESD workstation and a normal workstation?
Ans : The primary difference is electrostatic charge management. A normal workstation uses insulating materials that trap static charges, presenting a risk of sudden electrostatic discharge to sensitive items. An ESD workstation features static-dissipative surfaces and an integrated grounding framework to safely bleed off static charges to the facility ground.
Q : Do I need an ESD workstation for PCB assembly?
Ans : Yes, an ESD workstation is strongly recommended for printed circuit board (PCB) assembly, soldering, testing, and rework. Modern PCBAs contain sensitive surface-mount devices (SMDs) and microcontrollers that can be damaged or degraded by static discharges imperceptible to human operators.
Q : Can a normal workbench be made ESD safe?
Ans : A properly selected and grounded ESD mat can provide a controlled dissipative work surface on a standard bench. However, adding a mat alone does not automatically make the entire workstation ESD controlled. Frame grounding, accessory grounding, operator wrist-strap connections, and overall compliance with the facility's ESD control program must also be addressed.
Q : What makes a workstation ESD compliant?
Ans : A workstation supports ESD compliance when its surfaces provide controlled electrical resistance, its metallic components are bonded to a Common Ground Point (CGP), operator grounding jacks are accessible, and the entire assembly is connected to the facility's designated grounding system in accordance with standards like ANSI/ESD S20.20 or IEC 61340-5-1.
Q: How do you ground an ESD workstation?
Ans : An ESD workstation is grounded by connecting all static-dissipative work surfaces, conductive frames, and accessory structures to a central Common Ground Point (CGP). A ground cord then connects this CGP directly to the facility's designated earth ground or ESD grounding system.
Q: How often should an ESD workstation be tested?
Ans : ESD workstations should be tested periodically as outlined in the facility's ESD control program. Surface-to-ground resistance, point-to-point resistance, and operator wrist-strap connection continuity are typically audited monthly, quarterly, or annually using calibrated surface resistance meters and ground continuity testers.
